Mill liners

State-of-the-art technology and engineering allow ME Elecmetal to provide the widest and deepest product range for liners made in chrome-moly steel and white iron.

    SAG/AG mills:

  • Integrated and/or plate and lifter designs for head and shell liners
  • Grates
  • Pulp lifters
  • Filler rings

    Ball mills:

  • Shell liners

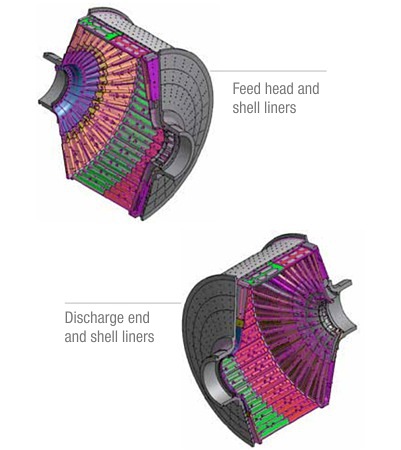

  • Feed head liners
  • Discharge end liners

    Rod mills:

  • Shell liners
  • Head liners
  • "Wedge" shell liners

    Accessories:

  • Wedgit: 5' rubber parts which prevent mill shell racing between liners
  • Liner fasteners: Wide arrat of bolts for mills (oval head, ridgeback head, nuts, washers, bolt kits, etc.)
  • Liner handlers: ME Elecmetal is representative of PaR System's liner handlers for all types of grinding mills



Grinding media:
ME Super SAG® Premium Quality Grinding Balls

100 - 160 mm (4" - 6.25" aprox.)

ME Super SAG® HRC Hardness Scale

Series Surface
(min. - max.)		 Volumetric
(min. - max.)		 Applications
HH 60-64 58-62 Mills with low ball-to-liner impact
S 58-62 56-60 Normal milling operations
T 54-60 54-60 Mills with higher chance of ball-to-liner impact

Table of ME Super SAG® Chemical Characteristics

Limits C Mn P
(max.)		 S
(max.)		 Si Ni
(resid.)		 Cr Mo Cu
(resid.)
Upper 0,90 1,02 0,022 0,022 0,40 0,10 1,05 0,15 0,15
Lower 0,70 0,80 - - 0,20 - 0,70 0,03 -



Grinding media:
ME Ultra Grind® Premium Quality Grinding Balls

40 - 100 mm (1.5" - 4" aprox.)

ME Ultra Grind® HRC Hardness Scale

Surface
(min. - max.)		 Volumetric
(min. - max.)		 Applications
60-64 60-64 Ball mills

Table of ME Ultra Grind® Chemical Characteristics

Limits C Mn P
(max.)		 S
(max.)		 Si Ni
(resid.)		 Cr Mo Cu
(resid.)
Upper 1,00 1,00 0,025 0,025 0,30 0,10 0,50 0,01 0,15
Lower 0,80 0,80 - - 0,20 - 0,40 - -



Grinding media:
ME Performa® II

22 – 100 mm (0.88" – 4" aprox.)

ME Performa® II HRC Hardness Scale

Surface
(min. - max.)		 Volumetric
(min. - max.)		 Applications
60-64 60-64 Ball mills

Table of ME Performa® II Chemical Characteristics

Limits C Mn P
(max.)		 S
(max.)		 Si Ni
(resid.)		 Cr Mo Cu
(resid.)
Upper 1,00 0,80 0,035 0,035 0,40 0,10 0,60 0,05 0,15
Lower 0,80 0,60 - - 0,15 - 0,40 - -
